8.4" LED Industrial Panel PC with intel® Atom (Dual-core 1.8G) Processor

Aluminum, IP65 front, LED panel, DC12V/24V option, Wifi option

Support Window CE,XPE,XP,window 7/8/10,Windows 2k,Lunix ect.

Home
|
Favorites

Related content
18.5" panel pc
22" panel pc
8.4" panel pc
10.4" panel pc
12.1" panel pc
15" panel pc
17" panel pc
19" panel pc




Home > products > industrial panel PC > intel atom D525 panel pc
8.4" panel pc

Clicks:  Date:2013-09-27


Model NO: IPPC-084D-2R



Features

1. 8.4 LED panel support 800*600 pixels
2. Front 6mm aluminum bazel with IP65 compliant
3. Front hardness glass protech screen
4. 2COM (1* RS485),1*LPT,2*PS/2,1*VGA,4*USB,2*LAN,1*Audio,1*MIC, 1* Mini PCIe slot
5. Wifi and DC8-30V(option)
6. Panel(Flush)mount with clips
7. Standard VESA 75/100mm support stand,wall mount and swing arm

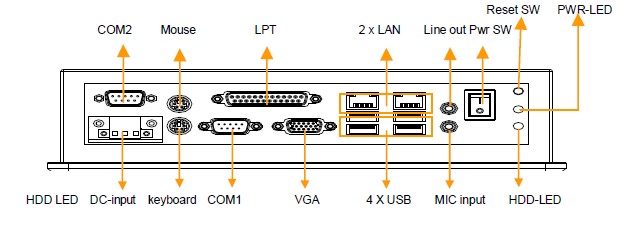

I/O Appearance

TFT Characteristics
Display Type 8.4 LED panel Pixel Number 800 * 600
Pixel Pitch(RGB)  0.297*0.297 Contrast Ratio 500: 1
Light Intensity 250 cd/m2 Viewable Angles 160°(H) , 140°(V)
MTBF 50,000hrs. Response Time  8 ms
OS Support DOS,Windows,Netware,Unix,Linux
System Characteristics
Processor Intel Atom D525 (Dual-Core 1.8GHz processor )CPU with 667 MHz FSB  Chipset Intel Atom D525+ICH8M
Memory 1 x SODIMM DDR3 800/1066/1333 SDRAM UP to 4GB. Graphic Intel GMA3150 chipset
HDD Space for 1* 2.5"320G HDD/16G SSD/32G SSD Audio Realtek® ALC662,5.1 Channel surround Audio
Ethernet Two LAN onboard:2*Realtek®RL8111x(Gigabit)10/100/1000 Ethernet Mounting Panel/VESA 75*75mm/100*100mm
VGA Port 1*VGA Connector Expansive Slot 1*Mini PCIe
Serial Port 2*COM ( 1*RS232,1*RS422/485) Speakers 2*2w (option)
Contruction Aluminum front bazel and aluminum chassis Watchdog Timer 255 Levels , 1-255 sec.
Available Options
Touch Screen Resistive,intel USB interface controller Wireless LAN/Wifi Meet IEEE802.11b/g
standard.
DC Power Input Standard is DC12V input (DC 8 -30V option) Speakers 2 * 2W
I/O Connector
PS/2 1 * PS2 for KB/ Mouse Lan 2 *10/100/1000 MLan port(RJ-45)
VGA DB-15 connector USB 4 * USB 2.0
COM 2 * COM ( 1*RS232, 1*RS422/485) Parallel port 1 * SPP/EPP/ECP port
DC Input 3Pin DC power input termnal block Sound Mic-in/line-out
Mechanical and Environmental
Operating temp. 32°F~125°F ( 0 °C to 50 °C) Storage temp. -4°F~140°F ( -20 °C to 60 °C)
Storage humidity 10% to 90%non-condensing Shock(operating) 1G/peak (11m sec)
Vibration 17 to 500Hz 1G PTP Front panel protection IP65/NEMA 4 compliant

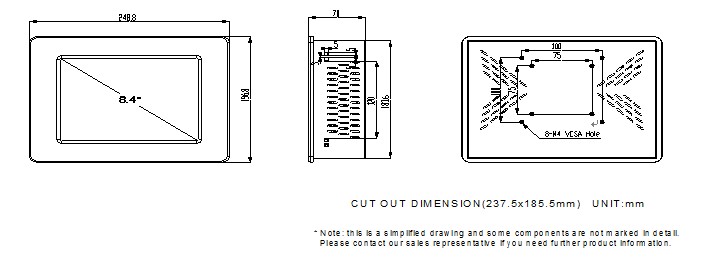

Dimension (WxHxD) 248.8 x 196.8 x 70 mm Weight (kgs) NW: 3.5KG ,  Volume Gross: 5KG

Power Supply

Output rating 30W Input Voltage 8-30V, "external AC adapter"
Certification CE/FCC/ RoHS



 Ordering Information

IPPC-084D-2R :    8.4" LED Slim Line Panel Mount Industrial Panel PC support intel® Atom D525 Dual-core 1.8Ghz processor, with 2G DDR3 RAM, 2.5"320G HDD/16G SSD,with resistive touchscreen,DC12V power adapter

IO: 2*COM( 1*RS232,1*RS422/485), 2*PS2, 1*VGA, 1*LPT, 4*USB, 2*LAN, 1* Audio, 1* MIC,1*Mini PCIe



MP-MS150NW :     Mini-PCIE wireless Lan card with antenna



Optional:
Storage 16G SSD/32GSSD/64G SSD
Wireless LAN Wifi
Power supply DC8-30V
Speakers 2 * 2W
