18.5" Wide LED Industrial Panel PC with intel® Atom (Dual-core 1.8G) Processor

Model NO: IPPC-185W-2R

  • 18.5" WXGA LED Panel 1366 × 768pixel
  • Front 6mm aluminum bezel with IP65 compliant
  • 4COM (1*RS485), 1*LPT, 2* PS/2, 1*VGA, 4*USB, 2*LAN, 1* AUDIO,MIC,1*PCI , 1 *PCI
  • Wifi (option)
  • with mounting clip
  • Standard VESA 75/100mm support stand ,wall mount and swing arm
Home
|
Favorites

Related content
18.5" LED widescreen industrial touch computer
22" widescreen industrial touch computer
8.4" LED industrial touch computer
10.4" LED industrial touch panel pc
12.1“ LED industrial touch computer
15" industrial touch computer
17" LED industrial touch computer
19" LED industrial touch computer




Home > products > industrial panel PC > intel atom D525 panel pc
18.5" LED widescreen industrial touch computer

Clicks:  Date:2013-09-27

18.518.518.518.5
  • 18.5
  • 18.5
  • 18.5
  • 18.5











System

CPU

Intel Atom D525 ( Dual-core 1.8GHz processor ) CPU with 667 MHz FSB

Chipset

Intel Atom D525 +ICH8M

Memory

1x SODIMM DDR3 800/1066/1333 SDRAM up to 4 GB

HDD

Space for 1x 2.5" 320G SATA HDD

Ethernet

Two LAN onboard: 2x Realtek ® RL8111x (Gigabit ) 10/100/1000Ethernet

Graphic

Intel GMA3150 chipset

Audio

Realtek ® ALC662, 5.1 channel surround audio

Mounting

Panel / VESA 75 X 75mm and 100 x 100mm

Construction

Aluminum front bezel and Aluminum chassis

DimensionWxHxD ( mm )

432 x 346 x 79mm

NET Weight ( KGs )

7.5 KG

OS support

Support DOS, Windows, Netware, Unix, Linux,

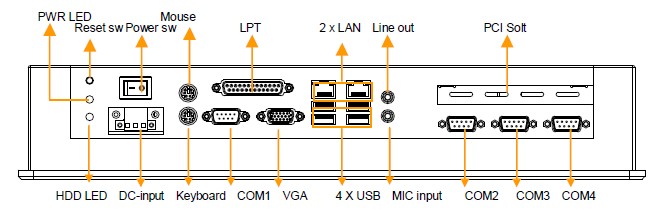

I/O Ports

Serial ports

3 x RS-232,1 x RS422/485

Parallel ports

1 x SPP/EPP/ECP port

Keyboard and Mouse ports

PS/2

VGA

DB-15 Connector

Sound

Mic-in / Line-out

Ethernet

2 x 10/100/1000MLAN port ( RJ-45 )

USB port

4 x USB2.0

DC input Connector

3Pin DC power input terminal block





Environmental
Specifications

Operating Temperature

0 °C to 50°C (32 °F~125°F)

Storage temperature

-20 °C to 60 °C (-4 °F~140 °F)

Relative Humidity

10% to 90% non-condensing

Shock (operating)

1G /peak ( 11m sec)

Vibration

17 to 500HZ 1G PTP

Front panel protection

IP65/NEMA 4 compliant



LCD Display

Display Type

18.5 LED panel

Screenresolution (Pixels)

1366 * 768

Brightness

250cd/m2

Viewing angle

160°(H) , 160°(V)





Touch screen

Internal USB interface controller

Resolution: continuous

Light transmission: 80% or more
Surface hardness : 3H

Operating force : ≤100g

Life expectancy : 35 Million

Support DOS, Windows, Netware, Unix, Linux,



Power Supply

Output Rating 40W

Input Voltage : 8~30v, *External AC adapter*

Ordering Information

IPPC-185W-2R

18.5" WXGA Industrial Panel PC support Intel® Atom D525 Dual-core 1.8GHz Processor, with 2G/4G RAM, 2.5” 320G HDD/16G SSD, with Resistive Touch Screen,DC19V/DC8-30V power



IO:4*COM(3xRS232,1XRS485), 2*PS2, 1*VGA, 1*LPT, 4*USB, 2*LAN, 1* Audio, 1* MIC,1xPCI

MP-MS150NW

Mini-PCIE wireless Lan card with antenna

 Optional:

Storage

16G SSD/32G SSD/64G SSD

Wireless LAN

Wifi

Power supply

DC8-30V

Speakers

2 x 2W
