12.1" LED Industrial Panel PC with intel® Atom (Dual-core 1.8G) Processor

Model NO: IPPC-120D-2RH

Feature:
1. 12.1 LED panel support 1280*1024 pixels
2. Front 6mm aluminum bazel with IP65 compliant
3. Front hardness glass protech screen
4. 4COM (1* RS485),1*LPT,2*PS/2,1*VGA,4*USB,2*LAN,1*Audio,1*MIC, 1* Mini PCIe slot
5. Wifi and DC8-30V(option)
6. Panel(Flush)mount with clips
7. Standard VESA 75/100mm support stand,wall mount and swing arm

Home
|
Favorites

Related content
18.5" LED widescreen industrial touch computer
22" widescreen industrial touch computer
8.4" LED industrial touch computer
10.4" LED industrial touch panel pc
12.1“ LED industrial touch computer
15" industrial touch computer
17" LED industrial touch computer
19" LED industrial touch computer




Home > products > industrial panel PC > intel atom D525 panel pc
12.1“ LED industrial touch computer

Clicks:  Date:2013-09-27

12.1“ LED industrial touch computer12.1“ LED industrial touch computer12.1“ LED industrial touch computer12.1“ LED industrial touch computer
  • 12.1“ LED industrial touch computer
  • 12.1“ LED industrial touch computer
  • 12.1“ LED industrial touch computer
  • 12.1“ LED industrial touch computer

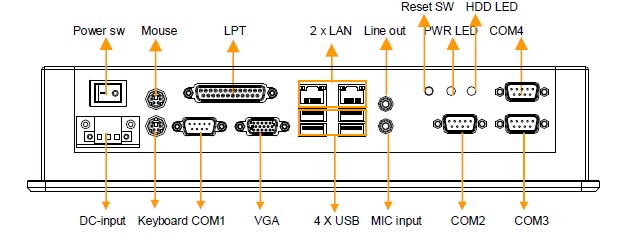

I/O Appearance





TFT Characteristics
Display Type

12.1" LED panel

Pixel Number

1024 * 768

Pixel Pitch(RGB)  0.297*0.297 Contrast Ratio

700: 1

Light Intensity

500 nits

Viewable Angles 160°(H) , 160°(V)
MTBF  50,000hrs. Response Time  5 ms
OS support Support DOS, Windows, Netware, Unix, Linux
System Characteristics
Processor Intel Atom D525 Dual-Core 1.8GHz processor with 667 MHz FSB Chipset Intel Atom D525+ICH8M
Memory 1 x SODIMM DDR3 800/1066/1333 SDRAM UP to 4GB. Graphic Intel GMA3150 chipset
Storage Space for 1* 2.5" SATA 320G HDD,16G SSD/32G SSD Audio Realtek® ALC662,5.1 Channel surround Audio
Ethernet Two LAN onboard:2*Realtek®RL8111x(Gigabit)10/100/1000 Ethernet Mounting Panel/VESA 75*75mm/100*100mm
VGA Port 1 *VGA Connector Expansive Slot 1 * Mini PCIe
Serial Port

4 * COM( 3*RS232, 1*RS422/485)

Speakers 2*2W
Contruction Aluminum front bazel and aluminum chassis Watchdog Timer 255 Levels , 1-255 sec.
Available Options
Touch Screen Resistive,intel USB interface controller Wireless LAN/Wifi Meet IEEE802.11b/g
standard.
DC Power Input standard DC12V (DC8-30V option) Speakers 2 * 2W
I/O Connector
PS/2 1 * PS2 for KB/ Mouse Lan 2 *10/100/1000 MLan port(RJ-45)
VGA DB-15 connector USB 4 * USB 2.0
RS-232

4 * COM( 3 * RS232, 1 * RS422/485)

Parallel port 1 * SPP/EPP/ECP port
DC Input 3Pin DC power input termnal block Sound Mic-in/line-out
Mechanical and Environmental
Operating temp. 32°F~125°F ( 0 °C to 50 °C) Storage temp.

-4°F~140°F ( -20 °C to 60 °C)

Storage humidity 10% to 90%non-condensing Shock(operating) 1G/peak (11m sec)
Vibration 17 to 500Hz 1G PTP Front panel protection

IP65/NEMA 4 compliant

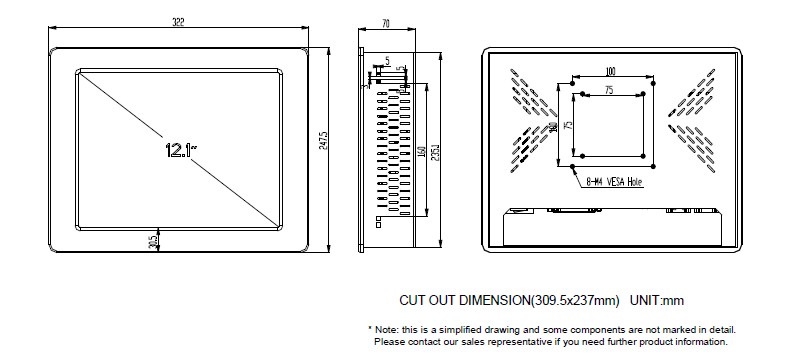

Dimension (WxHxD) 322 x 247.5 x 70 mm Weight

Net: 4.1KG , Volume Gross:6KG

Power Supply

Output rating 38W Input Voltage 8-30V, "external AC adapter"
Certification CE/ FCC/RoHS



Ordering Information

IPPC-120D-2R : 12.1" LED Slim Line Panel Mount Industrial Panel PC support intel® Atom D525 Dual-core 1.8Ghz processor, with 2G DDR3 RAM, 2.5"320G HDD/16G SSD,with resistive touchscreen,DC12V power

IO: 4*COM( 3xRS232,1XRS422/485), 2*PS2, 1*VGA, 1*LPT, 4*USB, 2*LAN, 1* Audio, 1* MIC,1*Mini PCIe



MP-MS150NW : Mini-PCIE wireless Lan card with antenna



Optional:
Storage 16G SSD/32G SSD/64G SSD
Wireless LAN  Wifi
Power supply  DC8-30V
Speakers  2 x 2W
