10.4" LED Industrial panel pc with intel® Atom (Dual-core 1.8G) Processor

Model NO:IPPC-104D-2R

Feature:
1. 10.4" LED panel support 800*600 pixels
2. Front 6mm aluminum bazel with IP65 compliant
3. Front hardness glass protech screen
4. 3COM (1* RS485),1*LPT,2*PS/2,1*VGA,4*USB,2*LAN,1*Audio,1*MIC, 1* Mini PCIe slot
5. Wifi and DC8-30V(option)
6. Panel(Flush)mount with clips
7. Standard VESA 75/100mm support stand,wall mount and swing arm

Home
|
Favorites

Related content
18.5" LED widescreen industrial touch computer
22" widescreen industrial touch computer
8.4" LED industrial touch computer
10.4" LED industrial touch panel pc
12.1“ LED industrial touch computer
15" industrial touch computer
17" LED industrial touch computer
19" LED industrial touch computer




Home > products > industrial panel PC > intel atom D525 panel pc
10.4" LED industrial touch panel pc

Clicks:  Date:2013-09-27

10.410.410.410.4
  • 10.4
  • 10.4
  • 10.4
  • 10.4



TFT Characteristics
Display Type

10.4XGA TFT LCD

Pixel Number 800 x 600
Pixel Pitch(RGB)  0.297*0.297 Contrast Ratio 500: 1
Light Intensity 250 cd/m2 Viewable Angles 160°(H) , 140°(V)
Max Colors  16.2MB Response Time  5 ms
MTBF 50,000hrs.
System Characteristics
Processor Intel Atom D525 ( Dual-core 1.8GHz processor ) CPU with 667 MHz FSB Chipset Intel Atom D525 +ICH8M
Memory 1x SODIMM DDR3 800/1066/1333 SDRAM up to 4 GB Graphic Intel GMA3150
chipset
HDD Space for 1* 2.5"320G HDD/16G /32G/64G SSD Audio Realtek ® ALC662, 5.1 channel surround audio
Ethernet Two LAN onboard:2*Realtek®RL8111x(Gigabit)10/100/1000 Ethernet Mounting Panel/VESA 75*75mm/100*100mm
VGA Port 1 * VGA Connector Expansive Slot 1 * Mini PCIe
Serial Port

3 * COM(  2* RS232,1*RS422/485)

Speakers 2*2w (option)
Contruction Aluminum front bazel and aluminum chassis Watchdog Timer 255 Levels , 1-255 sec.
Available Options
Touch Screen Resistive,intel USB interface controller Wireless LAN/Wifi Meet IEEE802.11b/g
standard.
DC Power Input Standard is DC12V input (DC 8 -30V option) Speakers 2 * 2W

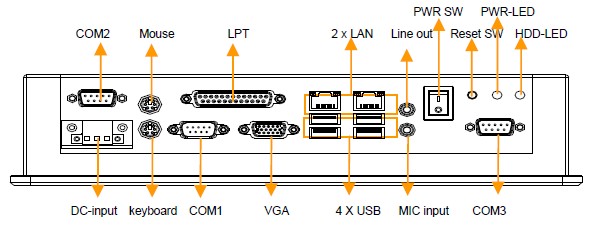

I/O Connector
PS/2 1 * PS2 for KB/ Mouse Lan 2 *10/100/1000 MLan port(RJ-45)
VGA DB-15 connector USB 4 * USB 2.0
COM

2 * COM ( 1*RS232, 1*RS422/485)

Parallel port 1 * SPP/EPP/ECP port
DC Input 3Pin DC power input termnal block Sound Mic-in/line-out
Mechanical and Environmental
Operating temp. 32°F~125°F ( 0 °C to 50 °C) Storage temp.

-4°F~140°F ( -20 °C to 60 °C)

Storage humidity 10% to 90%non-condensing Shock(operating) 1G/peak (11m sec)
Vibration 17 to 500Hz 1G PTP Front panel protection

IP65/NEMA 4 compliant

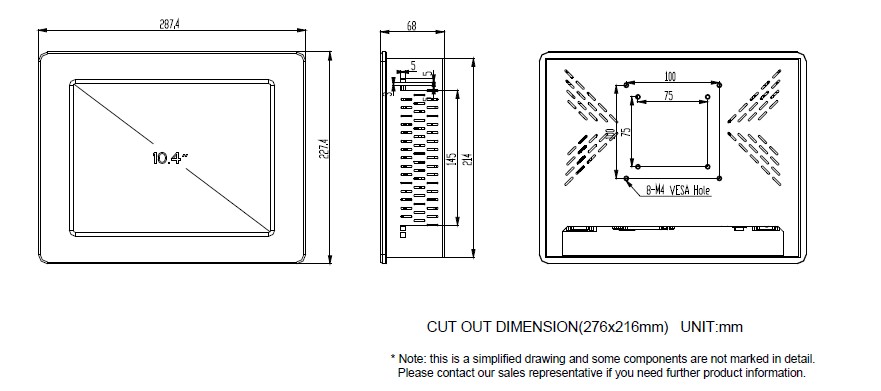

Dimension (WxHxD) 287.4 x 227.4 x 68mm Weight

Net: 3.9 KG , Volume Gross:5.5KG

Power Supply

Output rating 30W Input Voltage 8~30v, *External AC adapter*
Certification CE/FCC/ RoHS



Ordering Information

IPPC-104D-2R :10.4" LED Industrial Panel PC support Intel® Atom D525 Dual‐core 1.8GHz Processor, with 2G/4G RAM, 2.5" 320GHDD/16G SSD, with Resistive Touch Screen,DC12V/DC8‐30V power

IO:3*COM( 2*RS232,1*RS422/485), 2*PS2, 1*VGA, 1*LPT, 4*USB, 2*LAN, 1* Audio, 1* MIC,1*Mini PCI



MP-MS150NW : Mini-PCIE wireless Lan card with antenna

Optional:
Storage 16G SSD/32GSSD/64G SSD
Wireless LAN Wifi
Power supply DC8-30V
Speakers 2 * 2W
