18.5" J1900 panel pc

Clicks:  Date:2018-11-28


Model NO: IPPC-185J-2R

Features

 1. 18.5" LED Panel support 1366 × 768pixel

2. Intel Celeron J1900 ( Four-core 2.0GHz processor ) CPU with 1333 MHz FSB

3. Front 6mm aluminum bezel with IP65 compliant

4. Front hardness glass protect screen ( touch option )

5. 6COM (1xRS485), 1xLPT, 2x PS/2, 1xVGA, 4xUSB, 2xLAN, 1x AUDIO、MIC

6. 1xPCI Slot, 1 xMini PCIe slot

7.Back For Power LED and HDD LED Indication

8. Wireless LAN with antenna (option)

9. Panel ( Flush ) mount with clip

10. DC12V input ( option Wide range DC 8-30V input)

11. Standard VESA 75/100mm support stand ,wall mount and swing arm

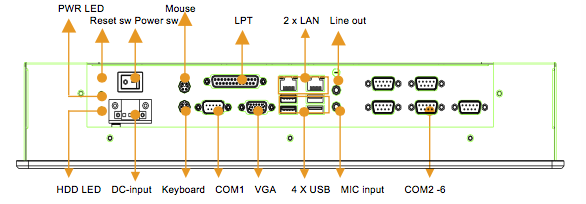

I/O Appearance

Various applications

1. Control or data entry operator interfaces

2. Information management and retrievals

3. Entertainment management systems

4. Point of sale (POS) terminals

5. Banking /office automation



Specifications









System

CPU

Intel Celeron J1900 (Four-core 2.0GHz processor) CPU with 1333 MHz FSB

Chipset

Intel Bay trail SOC

Memory

1x SODIMM DDR3 1600/1333 SDRAM up to 8 GB

HDD

Space for 1x 2.5"  500G SATA HDD

Ethernet

Two LAN onboard: 2x Realtek ® RL8111x (Gigabit ) 10/100/1000Ethernet

Graphic

Intel HD chipset

Audio

Realtek ® ALC662, 5.1 channel surround audio

Mounting

Panel / VESA 75 X 75mm and 100 x 100mm

Construction

Aluminum front bezel and Aluminum chassis

DimensionWxHxD ( mm )

480 x 300 X 75mm

NET Weight ( kgs )

8.5 KG

OS support

Support DOS, Windows, Netware, Unix, Linux,














I/O Ports

Serial ports

5 x RS-232,1 x RS422/485

Parallel ports

1 x SPP/EPP/ECP port

Keyboard and Mouse ports

PS/2

VGA

DB-15 Connector

Sound

Mic-in / Line-out

Ethernet

2 x 10/100/1000MLAN port ( RJ-45 )

USB port

4 x USB2.0

DC input Connector

3Pin DC power input terminal block







Environmental

Specifications

Operating Temperature

0 °C to 45°C (32 °F~113 °F)

Storage temperature

-20 °C to 60 °C (-4 °F~140 °F)

Relative Humidity

10% to 90% non-condensing

Shock (operating)

1G /peak ( 11m sec)

Vibration

17 to 500HZ 1G PTP

Front panel protection

IP65/NEMA 4 compliant





LCD Display

Display Type

18.5” LED panel

Screenresolution (Pixels)

1366 * 768

Brightness

300cd/m2

Contrast Ratio

1000:1

Response Time

5

Viewing angle

170°(H) , 160°(V)

Operation Lifetime

30.000 Hrs







Touch screen

Internal USB interface controller

Resolution: continuous

Light transmission: 80% or more

Surface hardness : 3H

Operating force : ≤100g

Life expectancy : 35 Million

Support DOS, Windows, Netware, Unix, Linux,



Power Supply

Output Rating  32W

Input Voltage : DC12V



Ordering information

IPPC-185J-2R

18.5” WXGA Industrial Panel PC support Intel® Celeron Four-core 2.0GHz Processor, with 4G RAM, 2.5” 500G HDD, with Resistive Touch Screen, DC12V input External AC adapter

MP-MS150NW

Mini-PCIE wireless Lan card with antenna

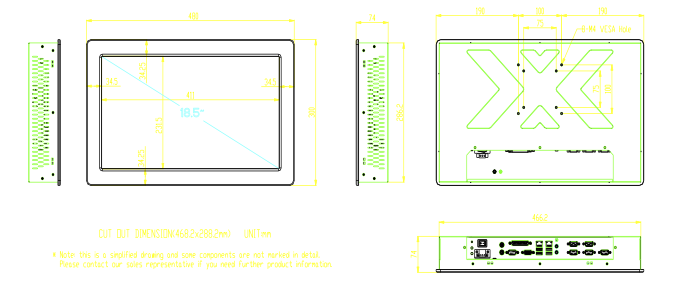

Dimension Diagram
