15" i3/i5/i7 high performance industrial panel PC IPC-I5615M-2R

Feature:

  • 15" LED Panel support 1024 × 768pixel
  • Intel Core i7/i5/i3 Sandy bridge Processor
  • System memory 1 x DDR3 DIMM slot ,up to 8G 1066/1333MHz
  • 6mm aluminum bezel with IP65 compliant
  • 4COM (1* RS485), 1*DVI, 1* PS/2, 1*VGA, 6*USB, 2*LAN, 1x*Audio,1*MIC
  • 1*PCI Express x16, 1*Mini PCIe
  • Standard VESA 75/100mm support stand ,wall mount and swing arm
Home
|
Favorites

Related content
18.5"panel pc
19"panel pc
22"panel pc
17" panel pc
15"panel pc
12.1"panel pc
10.4"panel pc




Home > products > industrial panel PC > i3/i5/i7 panel pc
15"panel pc

Clicks:  Date:2013-01-14

15151515
  • 15
  • 15
  • 15
  • 15



Specifications



 System

CPU

Intel Core i7/i5/i3 Sandy bridge Processor with1066/1333 MHz FSB

Chipset

Intel H61

Memory

1x DIMM DDR3 800/1066/1333 SDRAM up to 8 GB

HDD

Space for 1x 2.5" 320G SATA HDD

Ethernet

Two LAN onboard: 2x Realtek ® RL8111x (Gigabit ) 10/100/1000Ethernet

Audio

Realtek ® ALC662, 5.1 channel surround audio

Mounting

Panel / VESA 75 X 75mm and 100 x 100mm

Construction

Aluminum front bezel and Aluminum chassis

DimensionWxHxD ( mm )

406 x 312 x 92mm

NET Weight ( kgs )

8 KG

OS support

Support DOS, Windows, Netware, Unix, Linux,

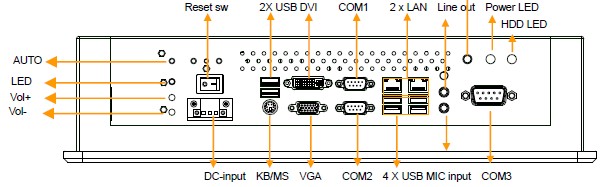

I/O Ports

Serial ports

3 x RS-232,1 x RS422/485

DVI ports

1 x DVI-D port

Keyboard and Mouse ports

PS/2

VGA

DB-15 Connector

Sound

Mic-in / Line-out

Ethernet

2 x 10/100/1000MLAN port ( RJ-45 )

USB port

6 x USB2.0

DC input Connector

3Pin DC power input terminal block

Environmental
Specifications

Operating Temperature

0 °C to 50°C (32 °F~125 °F)

Storage temperature

-20 °C to 60 °C (-4 °F~140 °F)

Relative Humidity

10% to 90% non-condensing

Shock (operating)

1G /peak ( 11m sec)

Vibration

17 to 500HZ 1G PTP

Front panel protection

IP65/NEMA 4 compliant

LCD Display

Display Type

15" LED panel

Screenresolution (Pixels)

10240 * 768

Brightness

350cd/m2

Viewing angle

160°(H) , 130°(V)

Touch screen

Internal USB interface controller

Resolution: continuous

Light transmission: 80% or more
Surface hardness : 3H

Operating force : ≤100g

Life expectancy : 35 Million

Support DOS, Windows, Netware, Unix, Linux,

Power Supply

Output Rating 88W

Input Voltage : 8~30v, *External AC adapter*

Ordering Information


IPC-I5615M-2R

15" SXGA High Performance industrial panel pc w/o i3/i5/i7 Processor, with 2G RAM, 2.5" 320G HDD/16G SSD, with resistive Touch screen, with 2x 3 Watts stereo speaker, with 19V/150W external AC adapter

4COM (1* RS485), 1*DVI, 1* PS/2, 1*VGA, 6*USB, 2*LAN, 1x*Audio,1*MIC,1*PCI Express x16, 1*Mini PCIe

MP-MS150NW

Mini-PCIE wireless Lan card with antenna

Optional:

Storage

16G SSD/32G SSD/64G SSD

RAM

4G/8G

Wireless LAN

Wifi

Power supply

DC8-30V
